What Is the Bambu Lab H2C?

Where it sits in the H series

Bambu's own shorthand for the H2 line is a clean three-step ladder. All three share the industrial enclosure, active 65°C chamber, 350°C temperatures and 1,000 mm/s motion system; they differ in how many melt zonesA melt zone is one hotend's heated path (heat block + nozzle), the part that actually melts filament. One hotend = one melt zone. they bring to a job.

Note the build volume: the "305 mm" in the table is the right-hotend single mode. Bambu's own mode table shows the full picture: 325 mm wide on the left hotend and 330 mm in dual-combined mode (the H2D manages 350 combined), so the Vortek rack costs 20 mm of X-width in right-hotend single mode (305 vs the H2D's single-nozzle 325 mm) and in combined mode (330 vs 350 mm); the H2C's left hotend reaches the same 325 mm as the H2D's single-nozzle figure, and in dual-nozzle mode both list 300 mm. The heated bed is slightly smaller too, which has a practical consequence we cover in "before you buy".

• H2D: one single-nozzle width, 325 mm, for either nozzle, as Bambu's mode table gives it.

How Vortek actually works

The clever part is not the rack, it is the heating. Conventional hotends connect to the printer with electrical pins: heater cartridge, thermistor wires, a plug. Pins and plugs are exactly what you do not want on a part that gets swapped robotically hundreds of times. So Bambu removed them entirely.

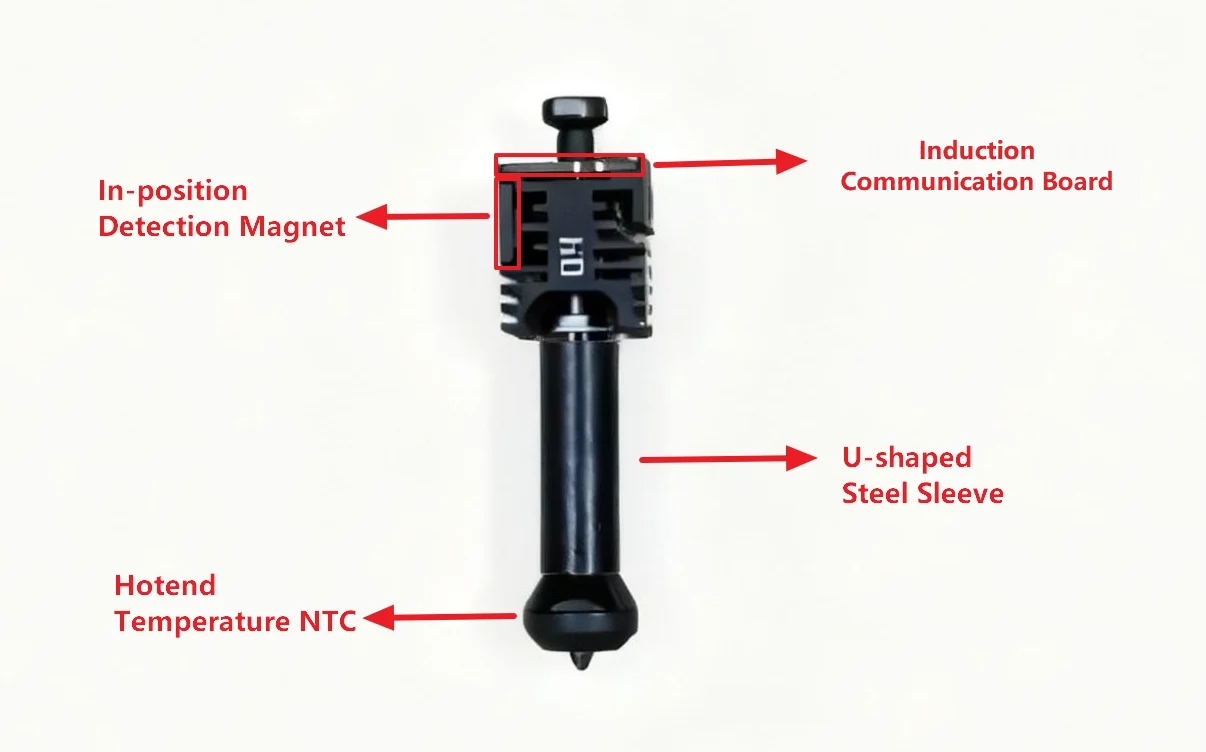

Each Vortek hotend is a sealed, contact-free module. Heating happens by electromagnetic induction: a drive coil on the toolhead generates a high-frequency alternating magnetic field, a magnetic core guides it into a U-shaped steel sleeve on the hotend, and eddy currents heat the steel directly, the same physics as an induction cooktop. Temperature data flows back the same contactless way, through an induction communication board on the hotend that talks to a receiver on the toolhead, no pins, no connectors, no wear.

hotends (= melt zones) available per job: 1 fixed + 6 swappable

7

max colors (12 AMS units, 24 slots + external spool)

25

prime-tower purge per hotend change in Purge-Saving mode

15 mm³

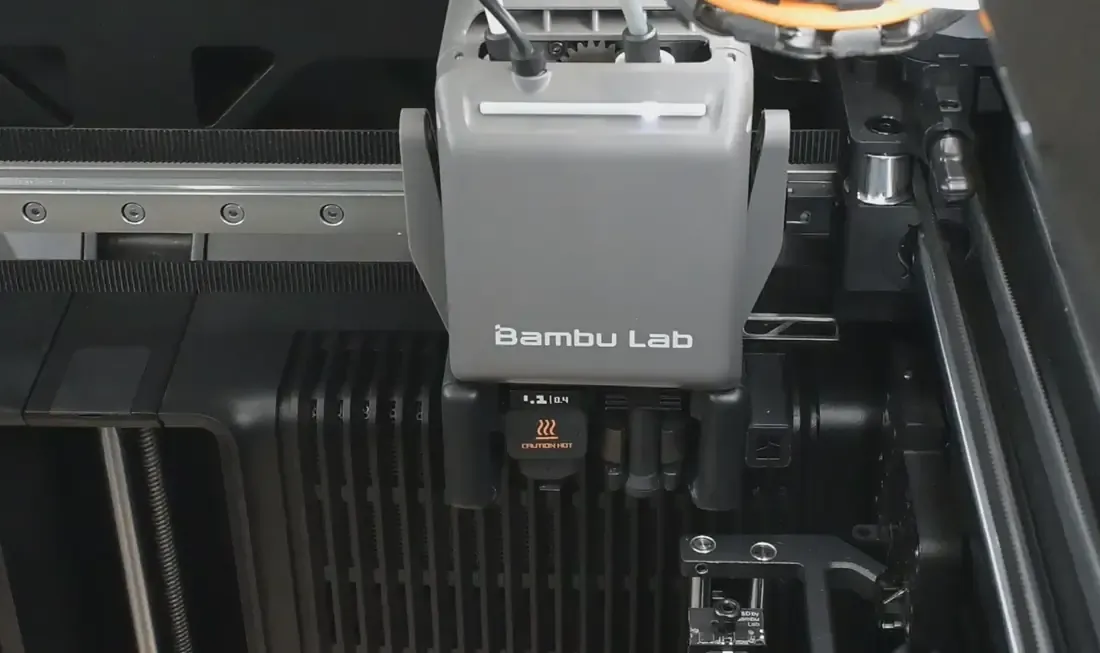

The six spare hotends live on a motorized two-row rack at the back of the build chamber. When the job calls for a material change, the toolhead drives over, drops its current Vortek hotend into a free slot (a latch mechanism locks and releases automatically), picks up the next one, and resumes. The rack self-locates with magnet-based homing so the handoff stays precise. The seventh melt zone is the fixed left hotend, a standard H-series hotend (the same type the H2D and H2S use, available in standard flow, high flow and tungsten-carbide versions), which typically runs your primary material full-time.

To be precise about what "7" means: the toolhead carries two hotend positions (left and right, like the H2D), and only one of them prints at a time. The right position is the one Vortek swaps. So the H2C does not print seven materials simultaneously; it gives one job access to seven dedicated melt zones, each material keeping its own.

Why dedicated melt zones matter

Single-nozzle multicolor, the way an AMS on a P1S or P2S works, has one unavoidable cost: every material change pushes the previous filament out through the same melt zone. That purged material lands in a waste chute or a purge tower, and on complex multicolor prints it can add up to a substantial share of the filament used. It also means materials share a nozzle: printing support material, TPU or PA through the same melt zone as your PLA invites cross-contamination and clogs.

Vortek sidesteps both problems structurally. Each material keeps its own hotend, so instead of a full flush only a small pressure-balancing extrusion goes onto the prime tower after each change, and nothing cross-contaminates. Rigid plus flexible plus soluble support in one job, each through its own dedicated melt zone, is the workflow the H2C was built for. The H2D already does this for two materials with its two switching nozzles; the H2C extends it to seven.

Variants, price, and what shipping looks like

The H2C sells in two versions. The laser version ships with 10W and 40W laser support built around a factory-integrated air pump, a top-view camera and laser-safe glazing, plus the cutting module. The non-laser version supports the cutting function only, and can be upgraded later with the same laser upgrade kit the H2D uses (with an external air pump instead of the built-in one).

Pricing held at $2,199 street against a $2,399 typical price until September 16, 2026, per our daily price tracker (running since July 2026). That day Bambu's Fall Sale took the US price to $2,099 for one week and the store's reference price moved from $2,399 to $2,199; the EU store went to 1,999€ from 2,149€ for the same week. Both reverted on September 22. The H2C is sold only as an AMS Combo, so the like-for-like comparison is combo against combo: at current US store prices it sits $450 above the H2D AMS Combo ($1,749) and $800 above the H2S AMS Combo ($1,399). Against the standalone printers in the table above, the gap is $650 to the H2D ($1,549) and $1,000 to the H2S ($1,199).

Before you buy: three things owners should know

• The H2C needs its own plate size. Because the Vortek mount shrinks the heated bed slightly, H2D/H2S/P-series plates do not fit. Budget for H2C plates (Bambu: the A2L and H2C use exactly the same build plates); the vision encoder, laser platform and cutting mat are shared across the H2 series.
• H2D and H2S owners can upgrade, but probably shouldn't. Vortek upgrade kits exist (shipping since early 2026), and Bambu's own FAQ recommends buying an H2C directly instead: the retrofit effectively swaps the entire X-axis assembly including the toolhead, demands real technical skill, and ends up costing more than the price difference.
• Routing got smarter in 2026. The June 2026 firmware (01.02.00.00) added Filament Track Switch support on the H2C (it needs Bambu Studio 2.5.3.60 and Bambu Handy 3.18.0 or later), and the module sells for $59.99, supporting the X2D, H2D and H2C. It releases the fixed binding between AMS units and nozzles, so filaments are no longer locked to the left or right feeding path. Whether it is worth buying depends heavily on how many AMS units you run: see our Filament Track Switch explainer for the limits Bambu names in its FAQ. Current firmware on our firmware tracker.

Who it's for, honestly

That is the honest read: the H2C is not "the best Bambu printer", it is the most specialized one. For the overwhelming majority of buyers the P2S, H2S or X2D/H2D answer the question better. But if your work is genuinely multi-material, nothing else in Bambu's lineup, and little else at this price anywhere, does what the Vortek system does.

Common questions

What is the Bambu Lab H2C?

The H2C is Bambu Lab's multi-material flagship, launched at Formnext in November 2025 and shipping since. It is a dual-hotend H-series printer (like the H2D) with the Vortek system added: a rack of six swappable induction-heated hotends next to a fixed standard hotend, giving one print job up to seven dedicated melt zones and up to 25 colors, with minimal purge waste.

How is Vortek different from an AMS?

An AMS changes which filament feeds into one shared hotend, so every material change requires purging the previous material out. Vortek changes the hotend itself: each material keeps its own dedicated melt zone, which eliminates most purge waste and cross-contamination. The H2C still uses AMS units for filament storage and feeding, up to 12 of them.

Can I upgrade my H2D or H2S to an H2C?

Yes, Bambu sells Vortek upgrade kits for the H2D and H2S (available since early 2026). But Bambu itself recommends buying an H2C directly if you want Vortek: the upgrade effectively replaces the whole X-axis assembly including the toolhead, takes real technical skill, and costs more in total.

Sources

Bambu Lab Wiki for the H2C, "Vortek Workflow and Function Introduction", "Induction Hotend Introduction", "Induction Hotend Rack Introduction" and the official H2C FAQ (all checked July 23, 2026) for the Vortek mechanics, melt-zone/AMS/color limits, plate compatibility, variant details and upgrade-kit guidance; that the A2L takes exactly the same build plates as the H2C from the Bambu Lab Wiki A2L FAQ (checked October 7, 2026); prime-tower purge per change from the wiki pages Vortek Workflow and Function Introduction and H2C Prime Tower Purge Mode (checked October 1, 2026); announced at Formnext November 2025 per Bambu's launch communications. Price history from our daily price tracker (Bambu store JSON-LD, running since July 2026; EU prices last checked September 29, 2026); current US prices from the Bambu US store product pages, checked October 21, 2026. Hotend detail photo and swap animation from the Bambu Lab Wiki (Vortek documentation). Figures can change; check the official store and wiki before purchase decisions.
